From the idea to the housing



A project by Martin H.

Goal: New simple system to build circuits


- without soldering


- without confusing wiring


- without designing a circuit board


- without dealing with specs


- without making any calculations


What do you need for that?


A library MHBus for the Arduino IDE


What can the MHBus do?


It can manage up to 250 MHBus modules


Each of these modules has its own ID

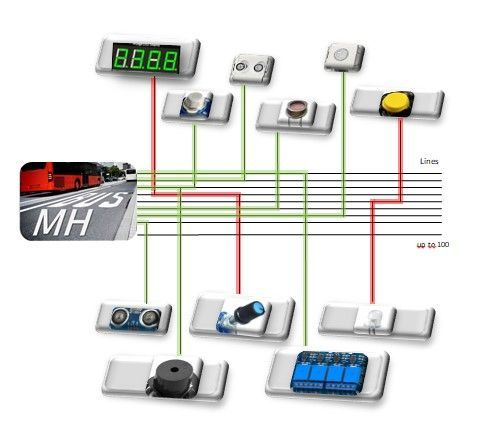

Lines are assigned to each module by the master


The modules communicate via this

the master and each other


ID and lines can change at any time
be assigned to


Data on a line can be from

several modules can be read


Many modules have special functions

which are programmed via the master

Simple normalized modules
15, 30 or 45mm wide

Small collection of Arduino modules

Examples of MHBus modules

Bus and modules allow clear

experimental circuits

Experimental circuit with jumper salad

Experimental circuit with MHBus modules

And enable an uncomplicated installation

of the modules in housings
